Description
Expert for viscous and particle-laden media

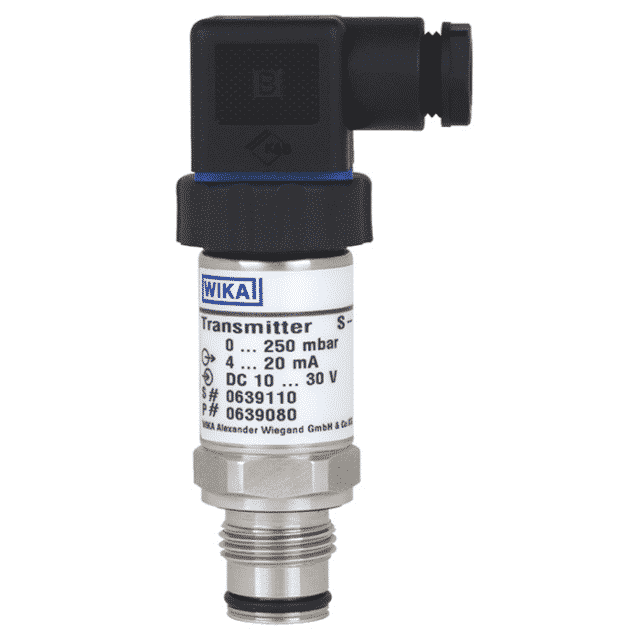

The model S-11 pressure transmitter with flush diaphragm
has been specifically designed for the measurement of
viscous, paste-like, adhesive, crystallising, particle-laden and
contaminated media, which would clog the pressure channel
of conventional process connections.
Through its optimised design, the flush process connection
enables cleanability with the wetted diaphragm integrated
into the process. Low-maintenance and trouble-free pressure
measurement is thus also guaranteed in critical applications
with frequently changing media.
High accuracy, a robust design, high-quality workmanship
and the high flexibility of configuration are key features of the
model S-11.
Flush process connection
All process connections of the flush pressure transmitter
are made of stainless steel and are fully welded and isolate
the medium from the pressure measuring instrument via a
positive seal. A reliable, dead-space free sealing between
the process connection and the measuring medium is thus
assured.
For high medium temperatures of up to 150 °C (302 °F),
the pressure transmitter is also available with an integrated
cooling element.
Specifically for the food and beverage industry, a version
with internal system fill fluid in accordance with FDA 21 CFR
178.3750 can be chosen.
